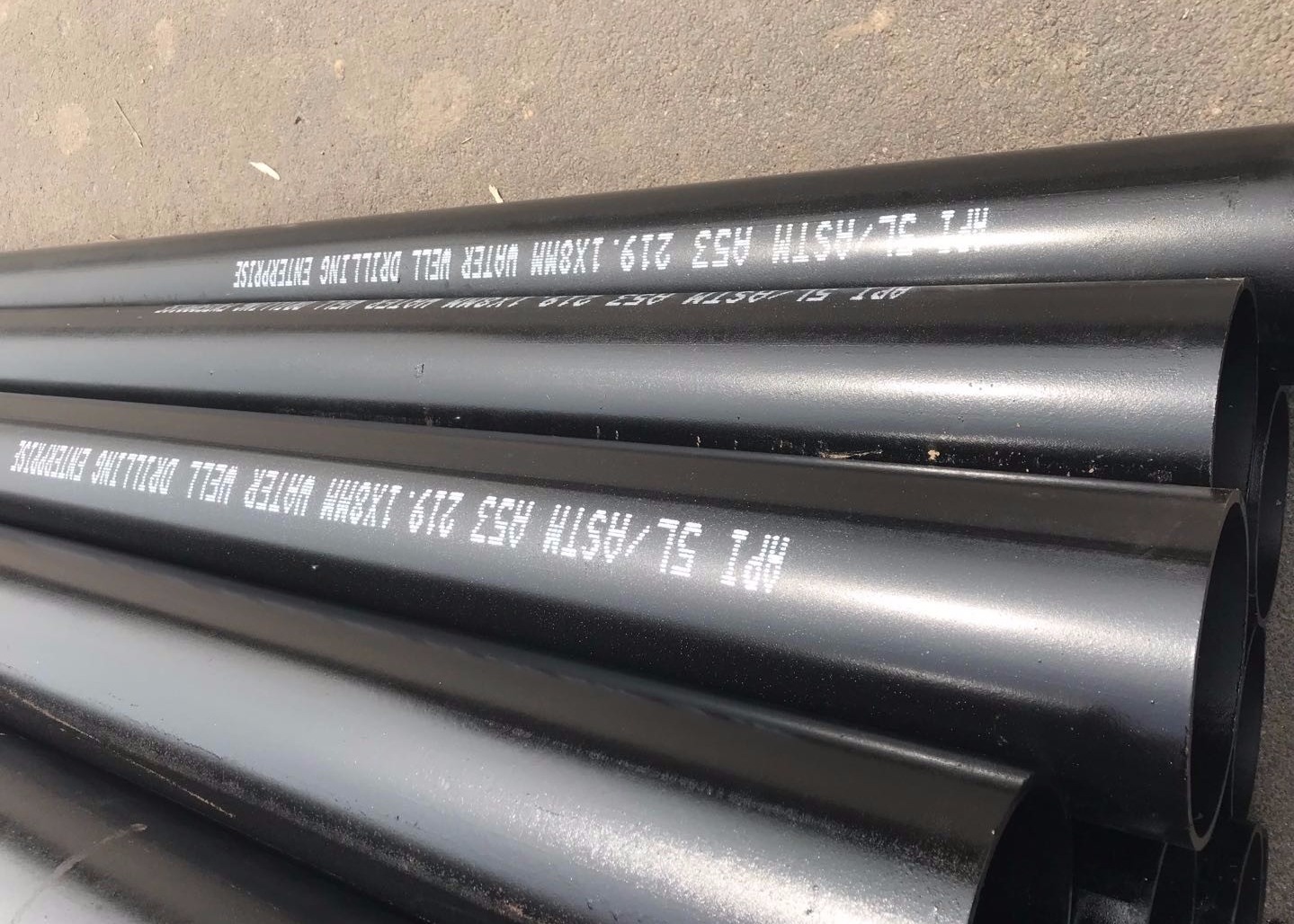

Anti Corrosive Coating API 5L X60 X65 PSL1 ERW Line Pipe

Electric resistance welded (ERW) pipe is manufactured by cold-forming a sheet of steel into a cylindrical shape.Current is then passed between the two edges of the steel to heat the steel to a point at which the edges are forced together to form a bond without the use of welding filler material.Initially this manufacturing process used low frequency A.C. current to heat the edges. This low frequency process was used from the 1920’s until 1970. In 1970, the low frequency process was superseded by a high frequency ERW process which produced a higher quality weld. Over time, the welds of low frequency ERW pipe was found to be susceptible to selective seam corrosion, hook cracks, and inadequate bonding of the seams, so low frequency ERW is no longer used to manufacture pipe. The high frequency process is still being used to manufacture pipe for use in new pipeline construction.

Pipe Type: ERW Pipe,ERW Steel Pipe,Electric Resistance Welding Pipe

Application: Oil/Gas/Water transmission,Machinery Manufacturing

Specification: Outer diameter:114.3mm-660mm

Wall thickness: 6.35mm-20mm

LENGTH:5.8/6/11.8/12 meters

Standard & Grade:API 5L:Gr.A,Gr.B,X42,X46,X52,X56,X60,X65 PSL1 and PSL2

ASTM A53:Gr.A,Gr.B

End: Square Ends/Plain Ends (straight cut, saw cut, torch cut),Beveled/Threaded Ends

Surface:Black Painting/Oil Painting/Anti-Rust oil/Anti-Corrosive Coating

Packing: Bundled,Plastic Caps Plugged,Waterproof Paper/Bag Wrapped

Hebei Huayang Steel Pipe Company Ltd. is the largest ERW and LSAW steel pipe manufacturer in Northern China. Established in 2005, we have a modern factory covering an area of 666,000 square meters, with over 700 employees and a fixed asset of 200 million USD, annual output capacity is up to 1,000,000 Tons. We can quickly fulfill all of our domestic and international customers’ orders, try our best to meet customers’ requirements.

We are located in Cangzhou city, Hebei province, a large steel production base in Northern China. Huayang is near to the raw material steel mill, such as Hebei Zhongtie Equipment Company, Shandong Iron and Steel Co., Ltd, Shougang Group, Jinxi Group, which reduce the material cost. At the same time, Huayang is 210 kilometers from Beijing, 150 kilometers from Tianjin City, 160 kilometers from Xingang port, with convenient transportation, which is convenient for customer’s visit and reduce the transportation cost. With lower material cost control, we can offer more competitive price and significant profit for our customers.

Huayang use advanced imported production equipment such as German once-through rolling machines, British CT METORI digital controllers, one φ114.3mm-φ168.3mm ERW steel production line, three φ219mm-φ426mm ERW steel pipe production line, one φ426mm-φ660mm ERW steel pipe production line, one JCOE production lines for LSAW pipe, size range from 16” to 56” (406.4mm-1422.4mm), wall thickness: 9.53mm-50mm. In 2018, we build a new advanced RBE production line for LSAW pipe, size range from 16” to 56” (406.4mm-1422.4mm), wall thickness: 9.53mm-30mm.

Twenty φ245mm-φ820mm thermal expansion pipe production lines, we have our own high-tech physics and chemistry labs where we can conduct our own tests such as physical properties and chemical composition test, and as well, UT, hydraulic test, X-ray and other test equipment is available, which can meet all related standards and inspection requirements.

In order to provide One-Stop service for customers with superior products from qualified supplier, Huayang set up branch company, Cangzhou Wingo International Trading Co., Ltd in 2013, to help customers purchase different products, such as seamless steel pipes, SSAW steel pipes, Galvanized pipes, Anti-corrosion pipes, pipe fittings and flanges etc.

Huayang steel pipes are used as the construction material and the pipelines for oil, gas, water, steam, and other middle & low hydraulic pressure fluids. Huayang’s products are sold nationwide and mainly exported to Southeast Asia, Middle East, South America, Africa, North America and Europe. Our company has consistently aimed to provide our customers with high quality, affordable industrial pipes. “Huayang” brand steel pipe has gained praises and high reputation from all of the world.
