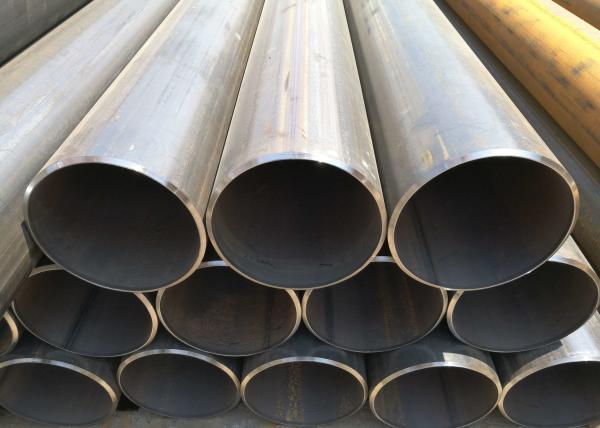

Carbon Steel DIN 2458 PSL2 Electric Resistance Welded Tube

Electric Resistance Welded pipe is mainly used for conveying low pressure fluid. It is made of mild steel which is easy to weld.Water pressure, bending, flattening and other tests should be carried out on steel tubes, which have certain requirements on surface quality. The delivery length is usually 3-18m, and the delivery length is usually fixed (or multiple).The nominal diameter of welded pipe is different from the actual diameter. According to the specified wall thickness, there are two kinds of welded pipe: ordinary pipe and thickened pipe, and there are two kinds of steel pipe with or without thread according to the form of pipe end.There is no need for electric welder and high frequency resistance straight seam welding wire, no need for cross grounding wire, no need for painting, which eliminates the traditional fusion welding and complex construction procedures such as wire casing.Simply connect the straight pipe joint to the pipe, and connect the threaded pipe joint to the theoretical weight of the round steel pipe and the junction box. After positioning, tighten (break) the screw with a special tool, and fix the joint with the high frequency resistance joint of the junction box with the locking bus.Pipe bender is used at pipe bend to bend corresponding radian on site.

ERW :Electric Resistance Welded pipe

​Standard:DIN 2458

Certificate:ISO 9001, ISO 14001, OHSAS 18001, API 5L PSL1&PSL2, CE (CPR & PED), GOST Certificates

Usage:Used for construction field, low pressure liquid transportation, in various engineering purposes, fencing, scaffolding etc.

Out Diameter:114.3mm - 812.8mm (4"-32")

​Wall Thk:4mm-22mm

Length:3M-18M

Steel Grade:API 5L PSL1 & PSL2: GR B, X42, X46, X56, X60, X65, X70
ASTM A53: GR.A, GR.B
EN10210/EN10219: S275, S275JR, S355JRH, S355J2H
GB/T3091: Q195, Q215, Q235, Q345, L175, L210, L245, L320, L360- L555

Surface:Fusion bond Epoxy coating, Coal Tar Epoxy, 3PE, Vanish Coating, Bitumen Coating, Black Oil coating as per customer’s requirement

Tests:Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength, Yield strength, Elongation), Technical Properties (Flattening Test, Bending Test, Blow Test, Impact Test), Exterior Size Inspection, Hydrostatic Test.

MTC:EN 10204/3.1B, EN 10204/3.2 (with Third Party Inspection

Size & Thickness:

Hebei Huayang Steel Pipe Company Ltd. is the largest ERW and LSAW steel pipe manufacturer in Northern China. Established in 2005, we have a modern factory covering an area of 666,000 square meters, with over 700 employees and a fixed asset of 200 million USD, annual output capacity is up to 1,000,000 Tons. We can quickly fulfill all of our domestic and international customers’ orders, try our best to meet customers’ requirements.

We are located in Cangzhou city, Hebei province, a large steel production base in Northern China. Huayang is near to the raw material steel mill, such as Hebei Zhongtie Equipment Company, Shandong Iron and Steel Co., Ltd, Shougang Group, Jinxi Group, which reduce the material cost. At the same time, Huayang is 210 kilometers from Beijing, 150 kilometers from Tianjin City, 160 kilometers from Xingang port, with convenient transportation, which is convenient for customer’s visit and reduce the transportation cost. With lower material cost control, we can offer more competitive price and significant profit for our customers.

Huayang use advanced imported production equipment such as German once-through rolling machines, British CT METORI digital controllers, one φ114.3mm-φ168.3mm ERW steel production line, three φ219mm-φ426mm ERW steel pipe production line, one φ426mm-φ660mm ERW steel pipe production line, one JCOE production lines for LSAW pipe, size range from 16” to 56” (406.4mm-1422.4mm), wall thickness: 9.53mm-50mm. In 2018, we build a new advanced RBE production line for LSAW pipe, size range from 16” to 56” (406.4mm-1422.4mm), wall thickness: 9.53mm-30mm.

Twenty φ245mm-φ820mm thermal expansion pipe production lines, we have our own high-tech physics and chemistry labs where we can conduct our own tests such as physical properties and chemical composition test, and as well, UT, hydraulic test, X-ray and other test equipment is available, which can meet all related standards and inspection requirements.

In order to provide One-Stop service for customers with superior products from qualified supplier, Huayang set up branch company, Cangzhou Wingo International Trading Co., Ltd in 2013, to help customers purchase different products, such as seamless steel pipes, SSAW steel pipes, Galvanized pipes, Anti-corrosion pipes, pipe fittings and flanges etc.

Huayang steel pipes are used as the construction material and the pipelines for oil, gas, water, steam, and other middle & low hydraulic pressure fluids. Huayang’s products are sold nationwide and mainly exported to Southeast Asia, Middle East, South America, Africa, North America and Europe. Our company has consistently aimed to provide our customers with high quality, affordable industrial pipes. “Huayang” brand steel pipe has gained praises and high reputation from all of the world.
